Correlation diagnostics for numeric columns

Illustrative data: starwars

The examples below make use of the starwars and storms data from the dplyr package

# some example data
data(starwars, package = "dplyr")
data(storms, package = "dplyr")

For illustrating comparisons of dataframes, use the starwars data and produce two new dataframes star_1 and star_2 that randomly sample the rows of the original and drop a couple of columns.

library(dplyr)
star_1 <- starwars %>% sample_n(50)
star_2 <- starwars %>% sample_n(50) %>% select(-1, -2)

inspect_cor() for a single dataframe

inspect_cor() returns a tibble containing Pearson’s correlation coefficient, confidence intervals and $p$-values for pairs of numeric columns . The function combines the functionality of cor() and cor.test() in a more convenient wrapper.

library(inspectdf)
inspect_cor(storms)

## # A tibble: 55 × 7
##    col_1                        col_2       corr  p_value  lower  upper pcnt_nna
##    <chr>                        <chr>      <dbl>    <dbl>  <dbl>  <dbl>    <dbl>
##  1 wind                         category   0.966 0         0.964  0.968     24.5
##  2 pressure                     wind      -0.928 0        -0.930 -0.926    100
##  3 pressure                     category  -0.870 0        -0.876 -0.863     24.5
##  4 hurricane_force_diameter     pressure  -0.768 0        -0.775 -0.760     54.2
##  5 hurricane_force_diameter     wind       0.720 0         0.711  0.729     54.2
##  6 tropicalstorm_force_diameter pressure  -0.641 0        -0.651 -0.629     54.2
##  7 tropicalstorm_force_diameter wind       0.536 0         0.523  0.549     54.2
##  8 hurricane_force_diameter     tropical…  0.520 0         0.506  0.533     54.2
##  9 tropicalstorm_force_diameter lat        0.407 0         0.392  0.423     54.2
## 10 hurricane_force_diameter     category   0.315 5.59e-55  0.279  0.350     11.9
## # ℹ 45 more rows

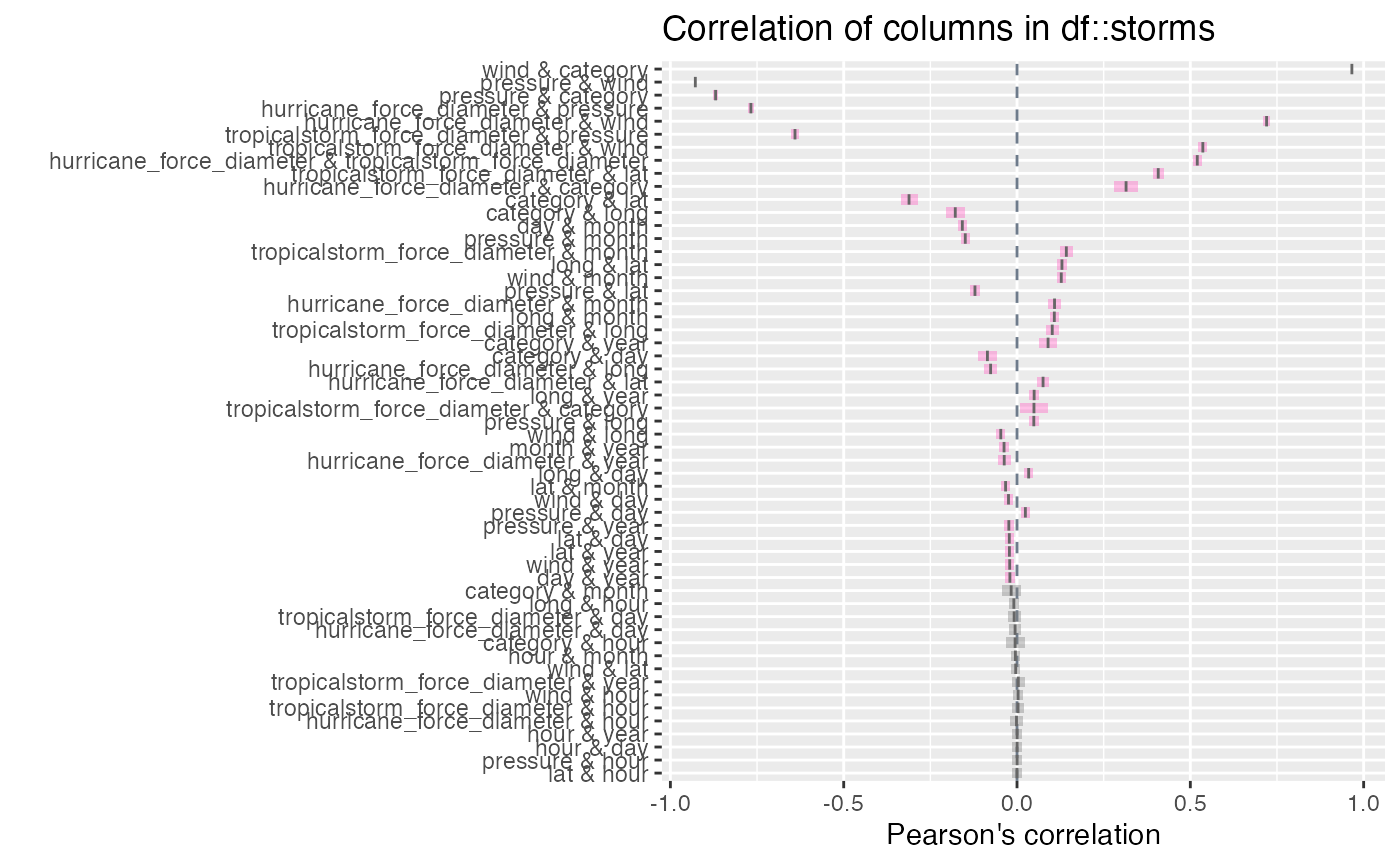

A plot showing point estimate and confidence intervals is printed when using the show_plot() function. Note that intervals that straddle the null value of 0 are shown in gray:

inspect_cor(storms) %>% show_plot()

Notes:

• The tibble is sorted in descending order of the absolute coefficient $|\rho|$.
• inspect_cor drops missing values prior to calculation of each correlation coefficient.

• The p_value is associated with the null hypothesis $H_0: \rho = 0$.

inspect_cor() for two dataframes

When a second dataframe is provided, inspect_cor() returns a tibble that compares correlation coefficients of the first dataframe to those in the second. The p_value column contains a measure of evidence for whether the two correlation coefficients are equal or not.

inspect_cor(storms, storms[-c(1:200), ])

## # A tibble: 55 × 5
##    col_1                        col_2                      corr_1 corr_2 p_value
##    <chr>                        <chr>                       <dbl>  <dbl>   <dbl>
##  1 wind                         category                    0.966  0.966   0.869
##  2 pressure                     wind                       -0.928 -0.928   0.888
##  3 pressure                     category                   -0.870 -0.870   0.913
##  4 hurricane_force_diameter     pressure                   -0.768 -0.768   1
##  5 hurricane_force_diameter     wind                        0.720  0.720   1
##  6 tropicalstorm_force_diameter pressure                   -0.641 -0.641   1
##  7 tropicalstorm_force_diameter wind                        0.536  0.536   1
##  8 hurricane_force_diameter     tropicalstorm_force_diame…  0.520  0.520   1
##  9 tropicalstorm_force_diameter lat                         0.407  0.407   1
## 10 hurricane_force_diameter     category                    0.315  0.315   1
## # ℹ 45 more rows

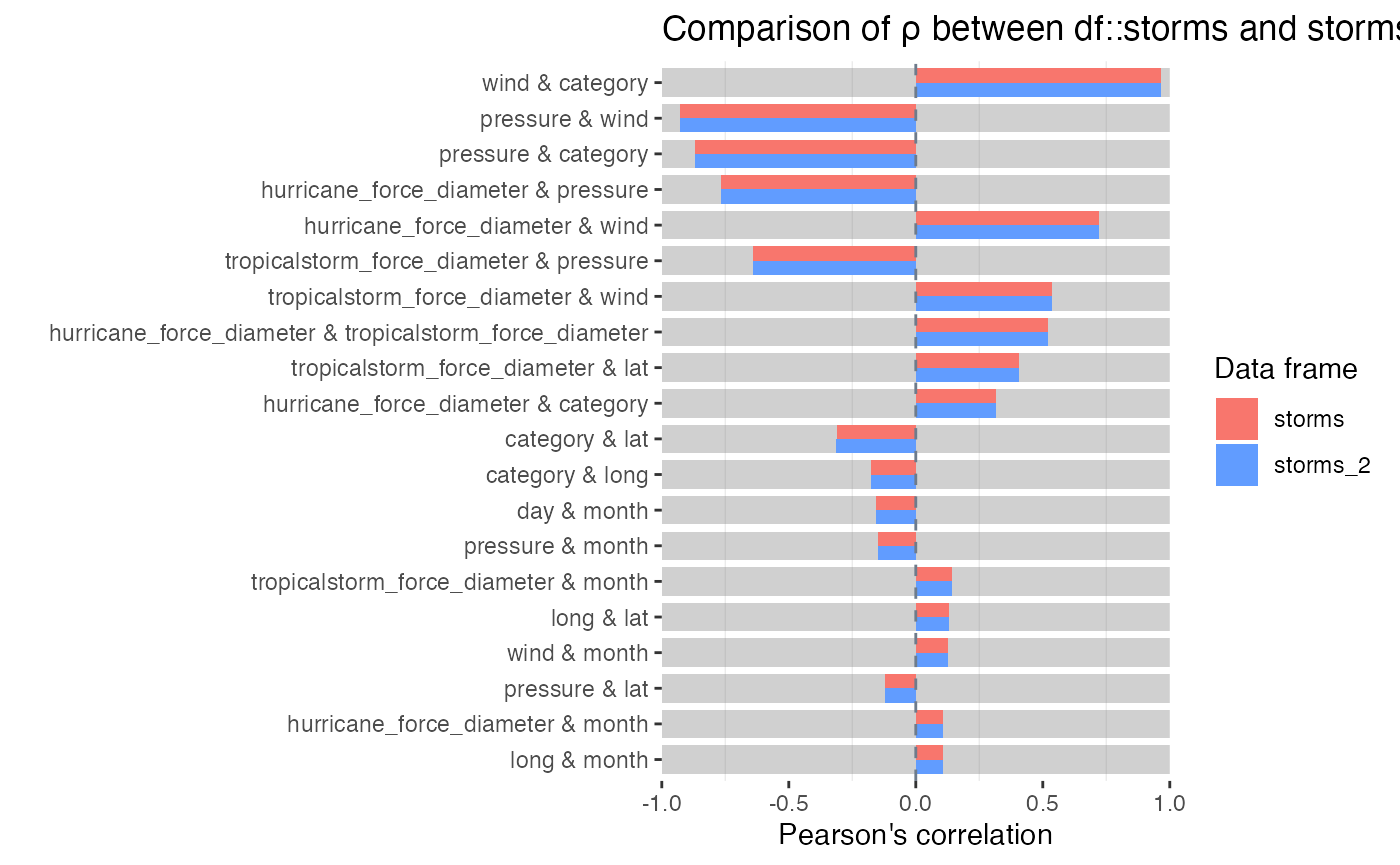

To plot the comparison of the top 20 correlation coefficients:

inspect_cor(storms, storms[-c(1:200), ]) %>%
  slice(1:20) %>%
  show_plot()

Notes:

• Smaller p_value indicates stronger evidence against the null hypothesis $H_0: \rho_1 = \rho_2$ and an indication that the true correlation coefficients differ.
• The visualisation illustrates the significance of the difference using a coloured bar underlay. Coloured bars indicate evidence of inequality of correlations, while gray bars indicate equality.

• For a pair of features, if either coefficient is NA, the comparison is omitted from the visualisation.
• The significance level can be specified using the alpha argument to inspect_cor(). The default is alpha = 0.05.
